Standfast Yachts and Polyworx have jointly developed Vacuum Infusion technology
for the Standfast 24 meter carbon/epoxy sailing yacht. In order to ensure that
all the process knowledge developed in this project was effectively transferred
Standfast decided to license the RTM-Worx software and hire Polyworx for some
additional advice. Even though the hull and deck were the first large parts infused
by Standfast, because of the simulations, they were already experienced before the
valves were opened.
Infusion of the hull
>> Infusion of the hull - Click here for animation and all the pictures
Even though the geometry of the hull is not very complex, infusion was not
easy, in particular because the total height is 3.5 meters. This means that
95% of the resin is infused in 50% of the total time, the last 5% of the resin
is slowed down by a combination of long flow paths and gravity and needs an
equal amount of time! This was no surprise, because the simulations clearly
indicated what could be expected.

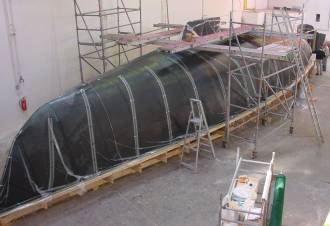

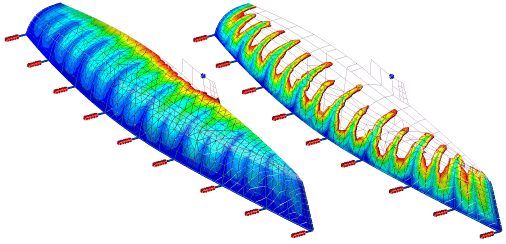

The image above shows the results from the simulations; the pictures were
taken during the infusion. For more pictures, and an animation of the
simulation click on the image above or
click here.
![Infusion of the hull [1]](romp08t.jpg)
The infusion strategy was optimised for the following two primary goals:
- Minimise the total injection time (make sure the mould gets filled);
- Make sure the flow front arrives at the keel base with an elliptic shape.
The second goal is important to avoid lots of small air traps on the symmetry
line where the two fronts meet (and the front in the carbon lags behind!). Those
two objectives are contradictive, so we had to settle for a compromise.
![Infusion of the hull [3]](romp19t.jpg)
Infusion of the deck
From the infusion of the deck, four series of photos are available, click
on one of the links below to view them:
>> Detail at the start of infusion
>> Rear view of the deck
>> Infusion of front part
>> Miscellaneous pictures

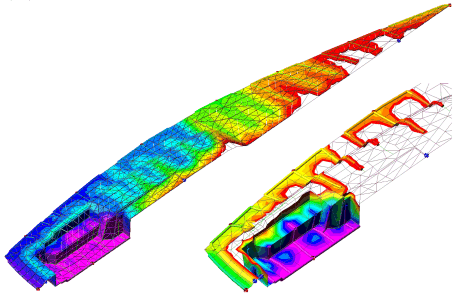

From a comparison of the simulation results and the actual infusion (from
the photographs below), you can see that the accuracy of the predictions is
very good.

The injection strategy was primarily based on the notion that resin should
flow from bottom to top, e.g. injection gates at the lowest point and vacuum
at the highest point. Obviously, the drawback is forming of air traps due to
racetracking through the sharp corners (as it turned out, this could not be
avoided - even though the reinforcement was very carefully applied). Anyway,
this was easily solved during the injection and the deck was very well
impregnated.
